As I near start of final assembly of the fuel tank, there are a lot of miscellaneous tasks I will need to tackle. Today I match drilled the fuel drain flange (VA-112) to the tank skin, finished out the build table with an additional back rivet plate, and started getting the DRDT-2 dimpler more rigidly mounted to the table. As soon as I got in the groove, it was time to head out for a day of tailgating and football watching with the boys. Below are some photos of the day.

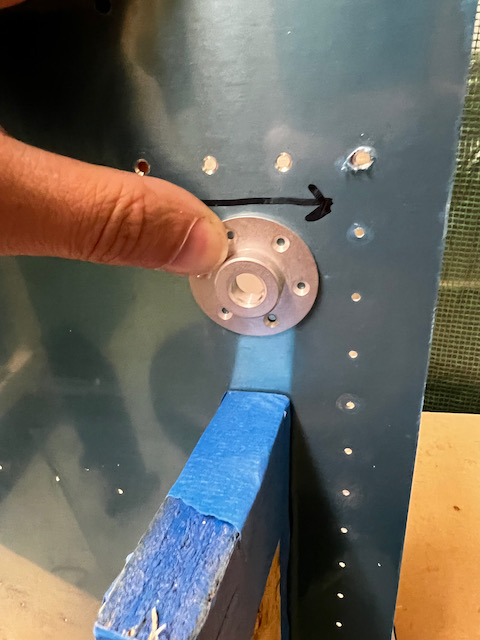

Fuel Drain Flange positioned over the pre-drilled drain hole

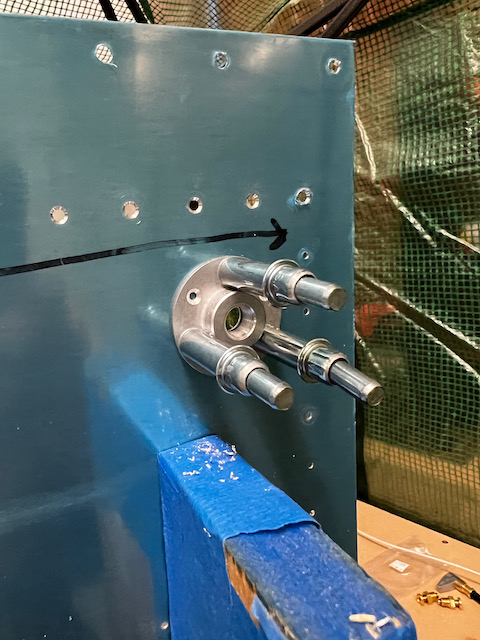

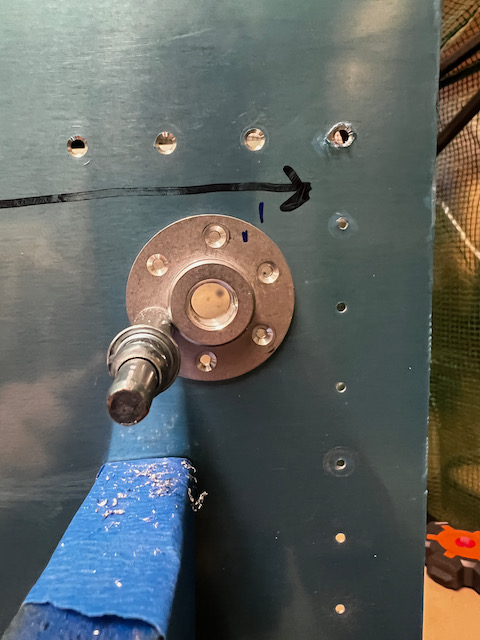

Cleocoing as I drill
And marking to make sure I can orient the same on final attachment

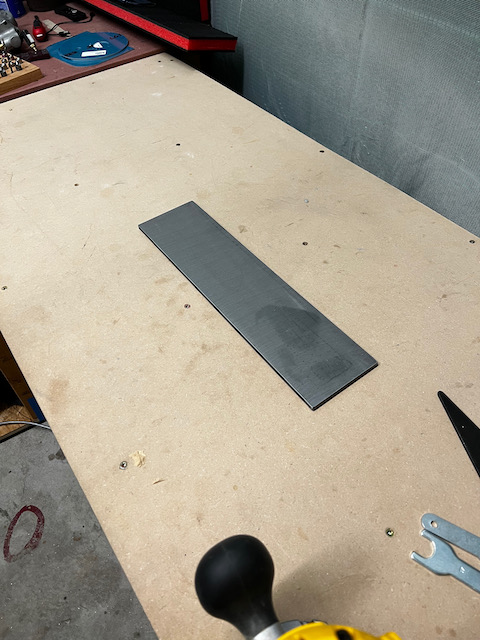

need a back rivet plate oriented for horizontal back riveting (such as stiffeners)

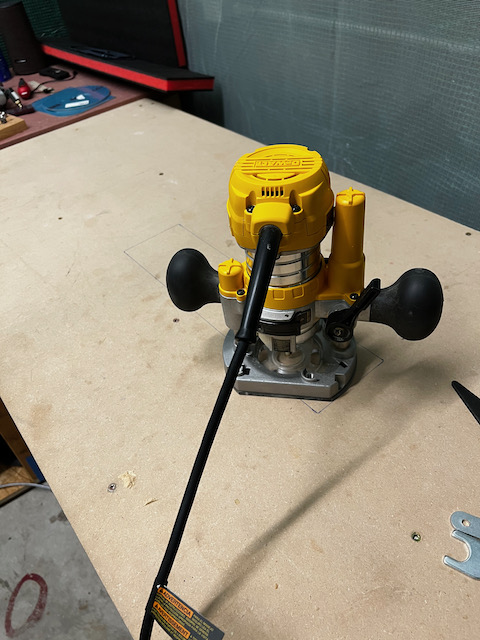

out comes the router

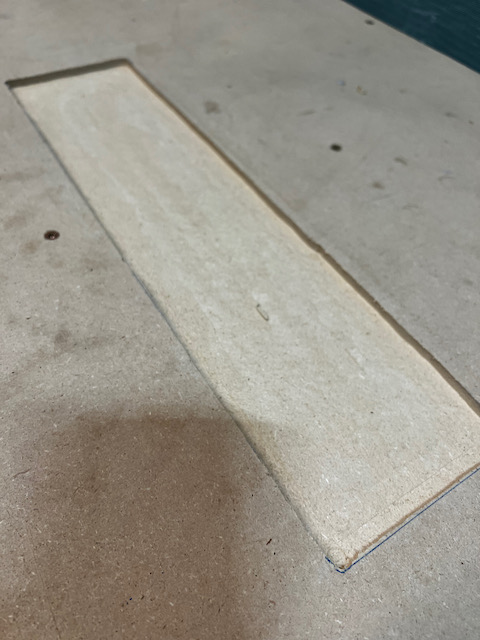

benchtop fully prepped for the plate

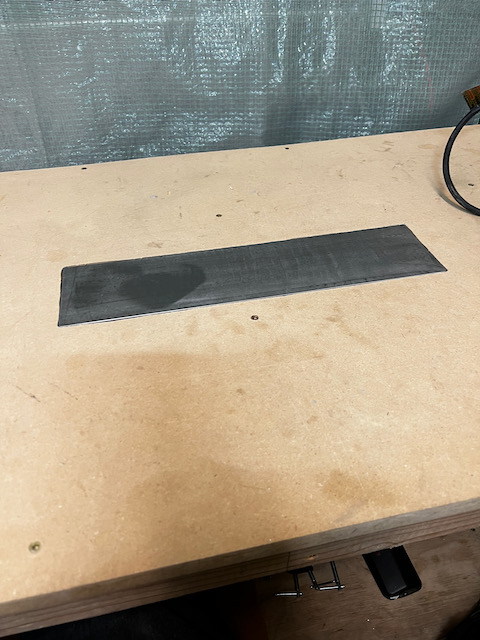

it fits!

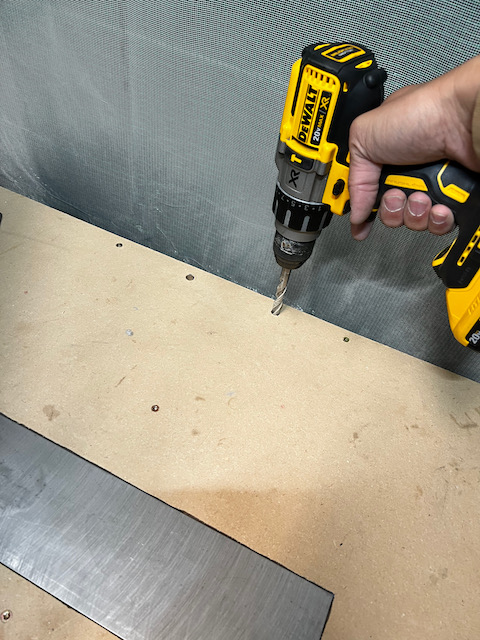

Drilling to mount the DRDT-2 Dimpler

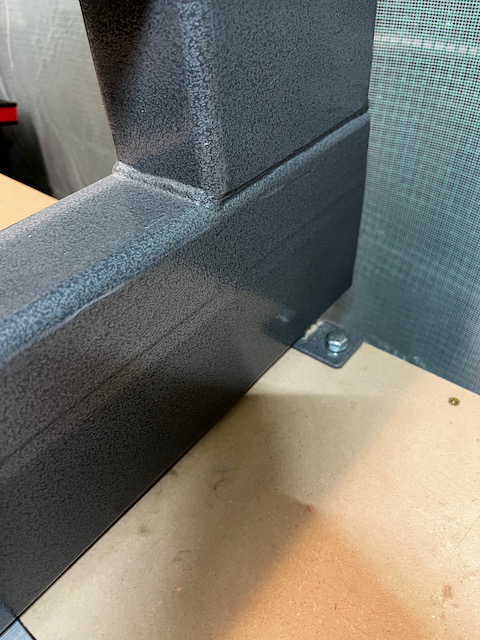

bolts installed

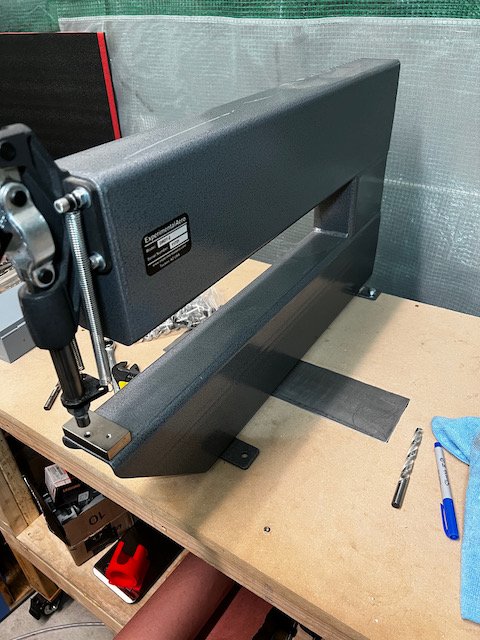

Workshop bench ready to go.
